Metal Bending & Forming Services in Louisville, KY
Metal Forming
Bending & Forming Solutions - HAFENDORFER
Equipped with a full range of advanced technology, Hafendorfer Machine, Inc. can transform your designs from concept to reality with precision metal bending and forming services. Our facility features state-of-the-art equipment that enables us to fabricate, bend, and form metal components to exacting tolerances. From complex assemblies to simple brackets, we have the technology, experience, and expertise to handle a wide range of bending and forming projects.

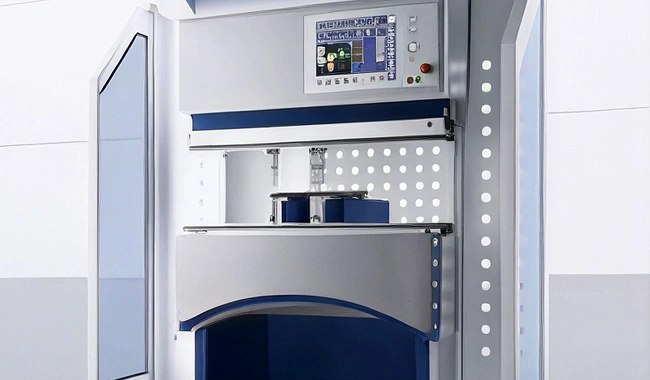

Our TRUMPF TruBend 7036 CNC Electric Press Brake delivers exceptional speed, precision, and efficiency. With a 6-axis back gauge, high acceleration, lightweight carbon-fiber back gauge fingers, and a gearless electric drive, the TruBend 7036 maximizes production speed while maintaining consistent accuracy.
With 40 tons of press force and a 40-inch working length, this high-performance press brake helps us stay highly competitive on small formed parts while providing fast turnaround times. Whether you need short or long production runs, Hafendorfer Machine has the equipment and expertise to deliver high-quality formed parts that meet your exact specifications.
Bending and Forming Processes

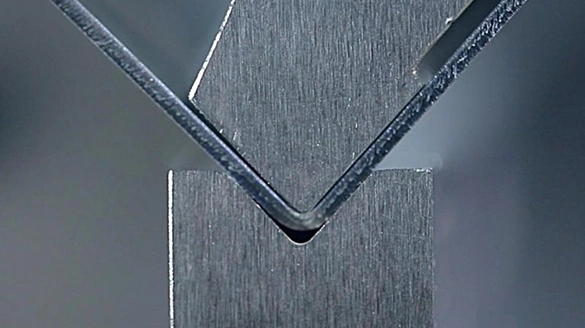

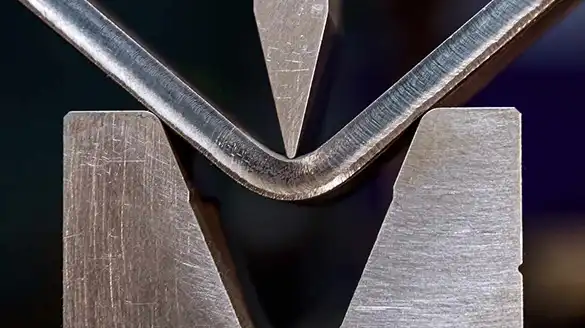

Metal Bending
Bending metal allows us to transform sheet metal into V, U or channel shapes, allowing us the ability to manufactured parts for a variety of industries. We are able to process material less than 6 inches wide and up to 10 ft. long.
Metal Forming
Forming is completely reshaping the metal without shaving, cutting, or removing material. Forming changes the physical shape of the material without changing the mass. Our metal forming provides a uniform look and consistent shape with a variety of materials.

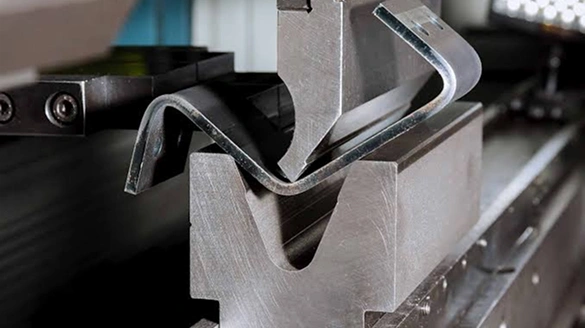

Press Brake Process
Our state-of-the-art press brakes bend metal with a high degree of accuracy. We have the ability to control the position and angle of the back-top, to make perfect bends every time.

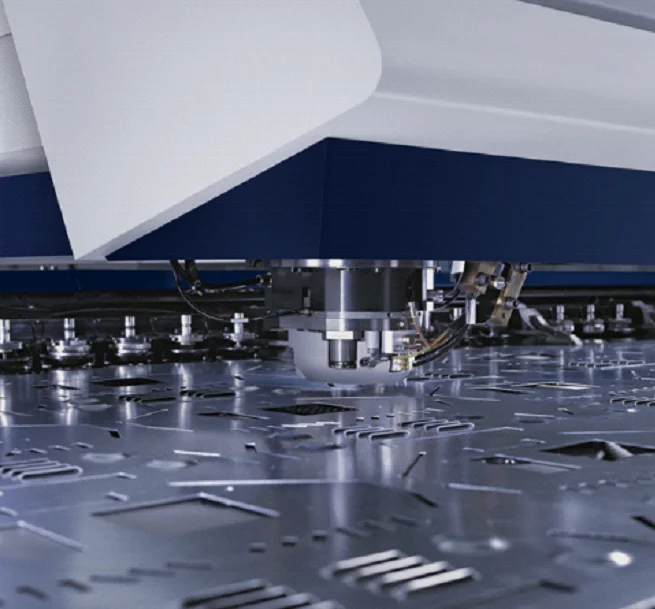

Punching Process
Punching is used to make a hole or an impression in the material. Our punch machine can handle simple shapes or more complex projects, and handles multiple stamps in one stage. This punch process is slightly less flexible than using a laser cutter, but it is faster for repetitive shapes.

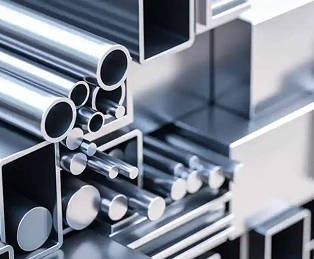

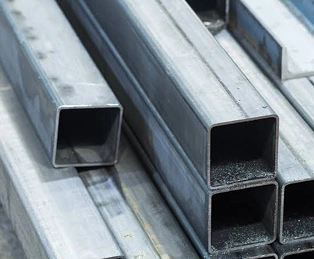

Materials
We have the ability to bend/form a variety of different material types and thicknesses:
- Mild Steel
- Stainless Steel
- Aluminum
- Galvanized
- Galvanneal
Bending and Forming Machinery

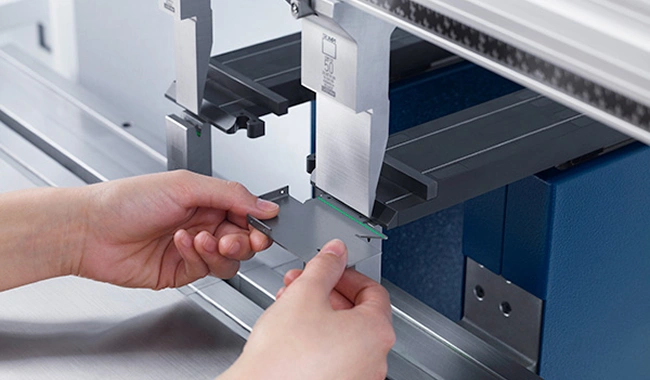

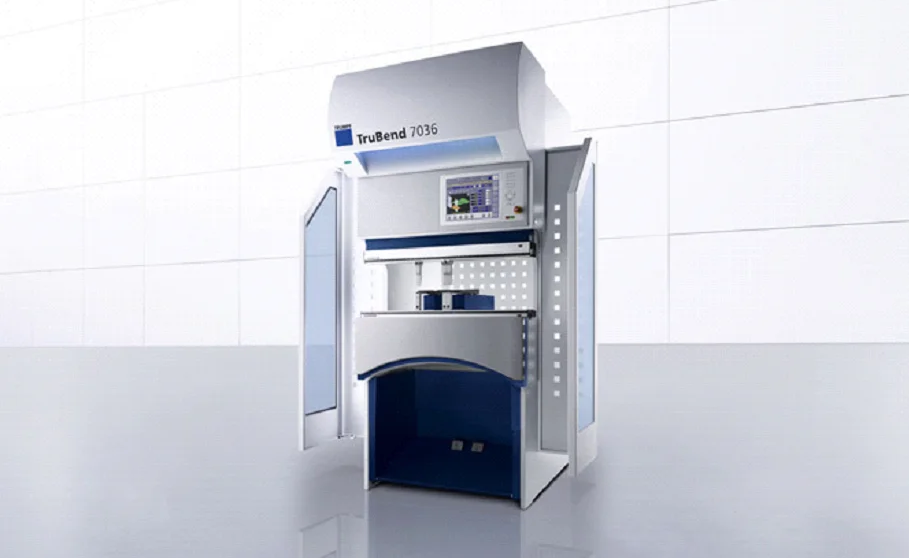

Trumpf Electric TruBend 7036
The TruBend series from TRUMPF is the fastest in the world. This extremely fast and flexible machine features high acceleration and certified ergonomics to allow our expert craftsman to work quickly and efficiently to make complex and precise parts in any format.

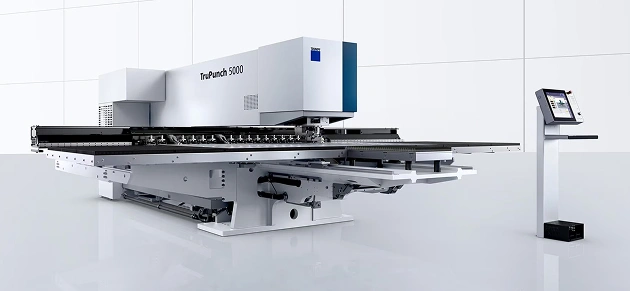

Trumpf TruPunch 5000
The TruPunch 5000 is the market leader in productivity, process reliability, and flexibility. Through individual automation solutions, this process guarantees reliable and optimal output, even with diverse applications. Thanks to the innovative on-demand drive, the TruPunch 5000 punches up to 1600 strokes/min or marks up to 3000 strokes/min.

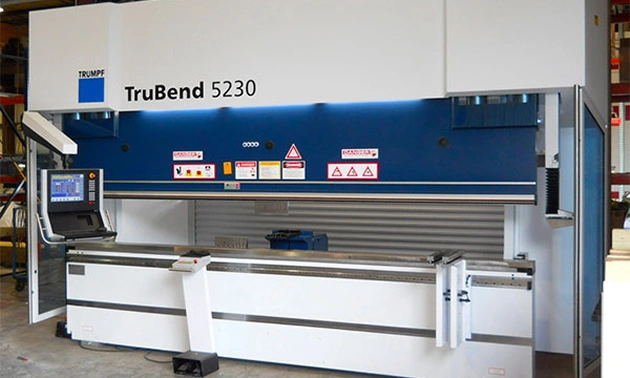

Trumpf TruBend 5230(S) CNC Press Brake
This new addition offers high productivity from programming and tool setup to the bending process. It offers us the ability to fabricate parts in any format, from the simplest to the most complex, with top quality.
- Press Force: 353 TONS
- 13FT of bending length.
- Optimal precision and angle accuracy
- Thickness Control Bending (TCB) a function that compensates for variations in the sheet thickness.

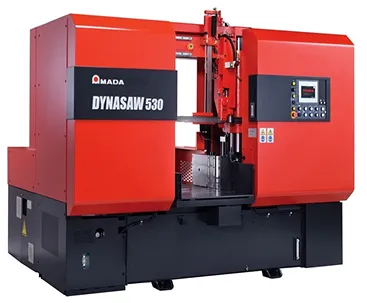

The Dynasaw 530 is our new High-Performance CNC Band Saw.
- 10 H.P.
- Non-Contact Material Positioning
- 2" Blade
- Smart Blade Change Feature
- Cutting Capacity: - Round Diameter 1.18”-20.87” (30-530mm) - Rectangle (WxH) 1.18” X 1.18”-20.87”-20.87 (30 X 30-530 X 530mm)
Trumpf Trubend 7050 Brake Press W/Bending Robot
This brake offers us greater tonnage for press braking thicker materials. It offers:
- High Output with Top Quality
- Ideal for bending small and medium parts at high speeds
- Perfect angles thanks to ACB Wireless
- Press Force: 55 Tons
- Bending Length: 60”
- High flexibility for bending with the 6-axis backgauge
- Robotic arm for loading/unloading

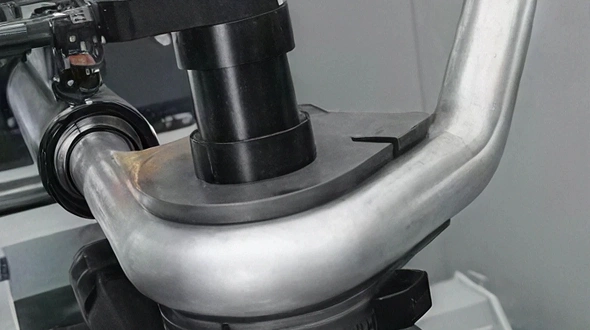

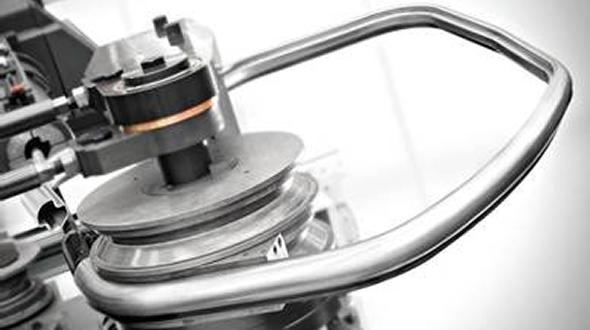

BLM ELECT63 Tube Bender
Features
- Delivers precise, repeatable results with every bend.
- Shorter set-up times
- Quick Clamp Changeover- provides rapid tool changeover without manual adjustments.
- Multi-Stack- more flexibility and fewer tool changes
- Mandrel- perfect bend with no bulge on the surface
- Hands free loading/unloading
- T-Square- contains the shape of the section and eliminates scratches and clamp marks by controlling the movement of the compound tooling
- Max Power allows you to multiply the amount of bending torque to process thicker tubes or high-strength materials that would normally require a larger tube bending machine.

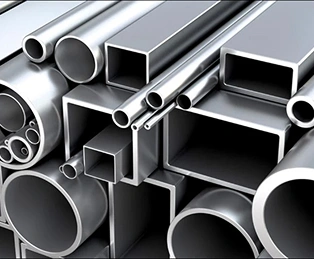

Material Details
- Round Tube Aluminum-Copper-Brass max 63 X 4.0 mm (2.480" x .156")
- Round Tube Steel max 63 x 2.0 mm (2.480" x .079")
- Round Tube Stainless Steel max 63 x 2.0 mm (2.480" x .079")
- Bending Radius Maximum (increasable) 180mm (7.08")
- Maximum square tube size 2.480” Diagonal
- Maximum Rectangle tube size 2.480 Diagonal
- Maximum tube length- 4500 mm (177” )

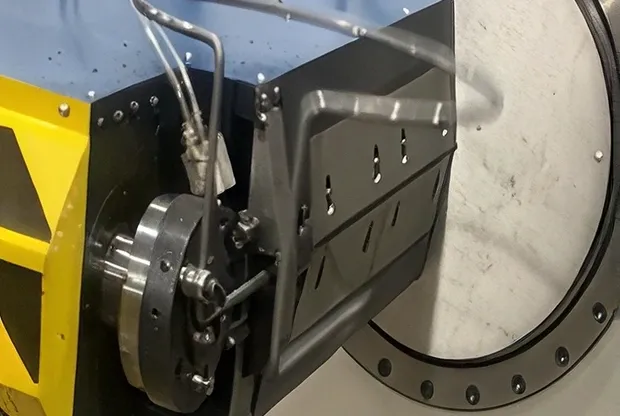

WIRE BENDING CAPABILITIES
Bending wire diameter
2-13 mm
Axes
3
Wire feeding lengths
No limits
Wire feeding accuracy
+/-0.05 mm
Rotary degree
0-+/-180°
Rotary accuracy
+ – 0.01°
Bending degree
0-180°
Bending accuracy
+ / – 0.02°
Why Choose Us
Why Choose Hafendorfer for Metal Bending & Forming?
Hafendorfer Machine combines advanced bending technology, experienced craftsmanship, and flexible manufacturing capabilities to turn customer designs into accurate, production-ready parts. From simple brackets to complex assemblies, our team works with a variety of metals and modern CNC equipment to deliver consistent results for custom and production requirements.
01
Precision in Every Bend
Advanced TRUMPF CNC press brakes provide excellent angle accuracy and control, helping Hafendorfer produce consistent, precise bends for both simple and complex components.
02
Built for Complex Projects
From straightforward brackets to complex fabricated assemblies, Hafendorfer has the equipment and expertise to handle a wide range of bending and forming requirements.
03
Flexible Material Options
Hafendorfer works with mild steel, stainless steel, aluminum, galvanized steel, and galvanneal, giving customers greater flexibility when selecting materials for their projects.
04
Advanced Production Capabilities
With press brake capacity reaching 353 tons and 13 feet of bending length, Hafendorfer can support demanding parts while maintaining accuracy and consistent production quality.
05
More Than Sheet Metal Bending
Hafendorfer’s capabilities extend beyond traditional sheet metal forming to include tube bending, wire bending, and punching, helping customers manage more of their manufacturing needs with one experienced partner.
FAQS
Frequently Asked Questions About Metal Bending & Forming
What Materials Can You Bend and Form?
Hafendorfer works with mild steel, stainless steel, aluminum, galvanized steel, and galvanneal for a wide range of bending and forming applications.
What Is the Difference Between Metal Bending and Metal Forming?
Metal bending creates specific angles or folds, while metal forming reshapes the material into more complex shapes based on the part design.
Do You Offer CNC Press Brake Bending?
Yes. Hafendorfer uses advanced CNC press brakes to produce accurate, consistent, and repeatable bends for custom and production parts.
Can You Handle Custom Metal Bending Projects?
Yes. We support both simple components and complex custom fabrication projects based on customer drawings, materials, and production requirements.
Do You Provide Tube and Wire Bending Services?
Yes. Hafendorfer provides tube and wire bending services for a variety of industrial parts, shapes, and custom manufacturing applications.
What Size Parts Can Hafendorfer Bend?
Hafendorfer can handle a wide range of part sizes and bending requirements, depending on the material, thickness, geometry, and project specifications.
