Laser Cutting
Laser Cutting Services
Best Laser Cutting Services in Louisville, KY
If you can design it, we can cut it. Hafendorfer Machine provides precision laser cutting services in Louisville, KY, serving customers across a wide range of industries and applications.
Our advanced TRUMPF TruLaser 3040 and TruLaser 3030 systems deliver fast, accurate, and consistent cuts—even for intricate designs and demanding part geometries. Our laser cutting capabilities allow us to work with a variety of metals while maintaining the precision and quality your project requires.
Whether you need a short production run, or high-volume production, our experienced team and advanced laser technology provide reliable results with exceptional accuracy and repeatability.
From simple profiles to complex designs, Hafendorfer Machine delivers precision laser cutting without compromise.

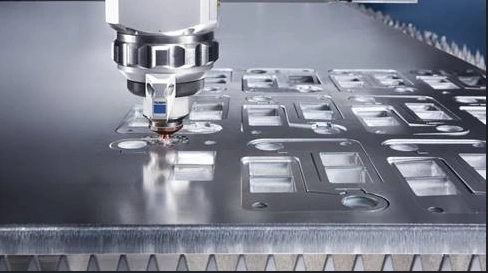

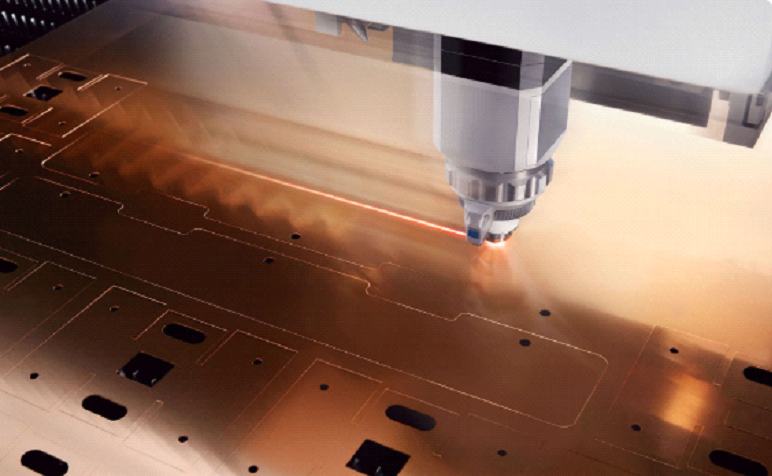

2D Laser Cutting
Our custom laser cutting process delivers exceptional accuracy, clean cut quality, and consistent results. Compared with traditional mechanical and plasma cutting methods, 2D laser cutting offers several advantages, including tighter tolerances, improved precision, and reduced material distortion.
2D laser cutting creates a smaller heat-affected zone, helping minimize the risk of warping or deforming the material during processing. Compared with plasma cutting, laser cutting can also deliver cleaner edges, greater repeatability, tighter precision, and improved energy efficiency for many applications.
With advanced precision laser technology and experienced operators, Hafendorfer Machine can produce everything from intricate components and tight-tolerance parts to high-volume production runs. For certain materials and complex geometries, our laser cutting capabilities provide the accuracy and quality that traditional cutting methods simply cannot match.

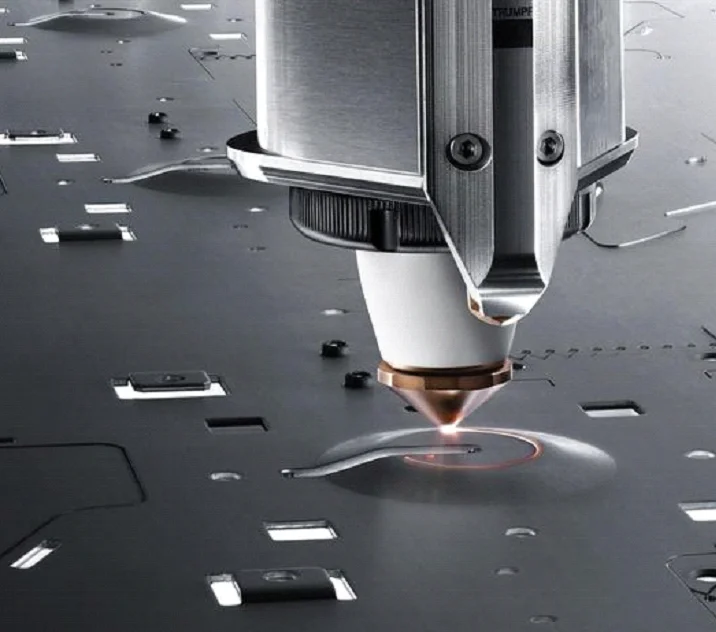

CNC Laser Cutting
Our Computerized Numerical Control (CNC) laser cutting machines are operated with exact programmed commands to create a product specific to your exact needs. Our precise CNC laser cutting machines use either CO2 or Nitrogen to cut, bore, and engrave a variety of materials. We use only the latest technology and proven methods for CNC production for our entire custom laser cutting services.
Laser Cutting Machines
Trumpf TruLaser 3030
This is the latest generation of the reliable TruLaser family. It combines innovative technology with a new higher laser power all rolled into a brand new design. With one cutting head and integrated pallet changer, this new concept delivers a simplified operation that is optimized for perfection.
Material/Cutting Thickness
Mild Steel
1.00″ (25mm)
Stainless Steel
0.75″ (20mm)
Aluminum
0.50″ (12mm)
Trumpf TruLaser 3040 Fiber (6 KW)
Our machine is able to process parts from thick to thin material with extremely good edge quality and higher throughput speeds. This Fiber laser allows us to process material thickness up to one inch on mild steel, stainless steel, and aluminum. The system is able to store up to 200,000 lbs. of material at a time, & has the ability to load raw material as well as removing & storing finished Parts.
Bed Capacity- 2,032 x 4,064 mm (80 X 160 in.)
Material/Cutting Thickness
Carbon & Stainless Steel
1” (25.4mm)
Aluminum
1” (25.4mm)
Brass
.39″ (9.906mm)
Copper
.39″ (9.906mm)
Trumpf TruLaser Tube 7000 Fiber
The latest technology in tube laser cutting comes from the TruLaser Tube 7000 Fiber from TRUMPF. This new machine increases the possibilities of production and can accommodate up to four metric tons of raw material. The TruLaser Tube 7000 Fiber machine is capable of cutting tubes and profiles measuring up to 250 mm in diameter with wall thicknesses of up to 8 mm and quality bevel cuts up to 45 degrees.

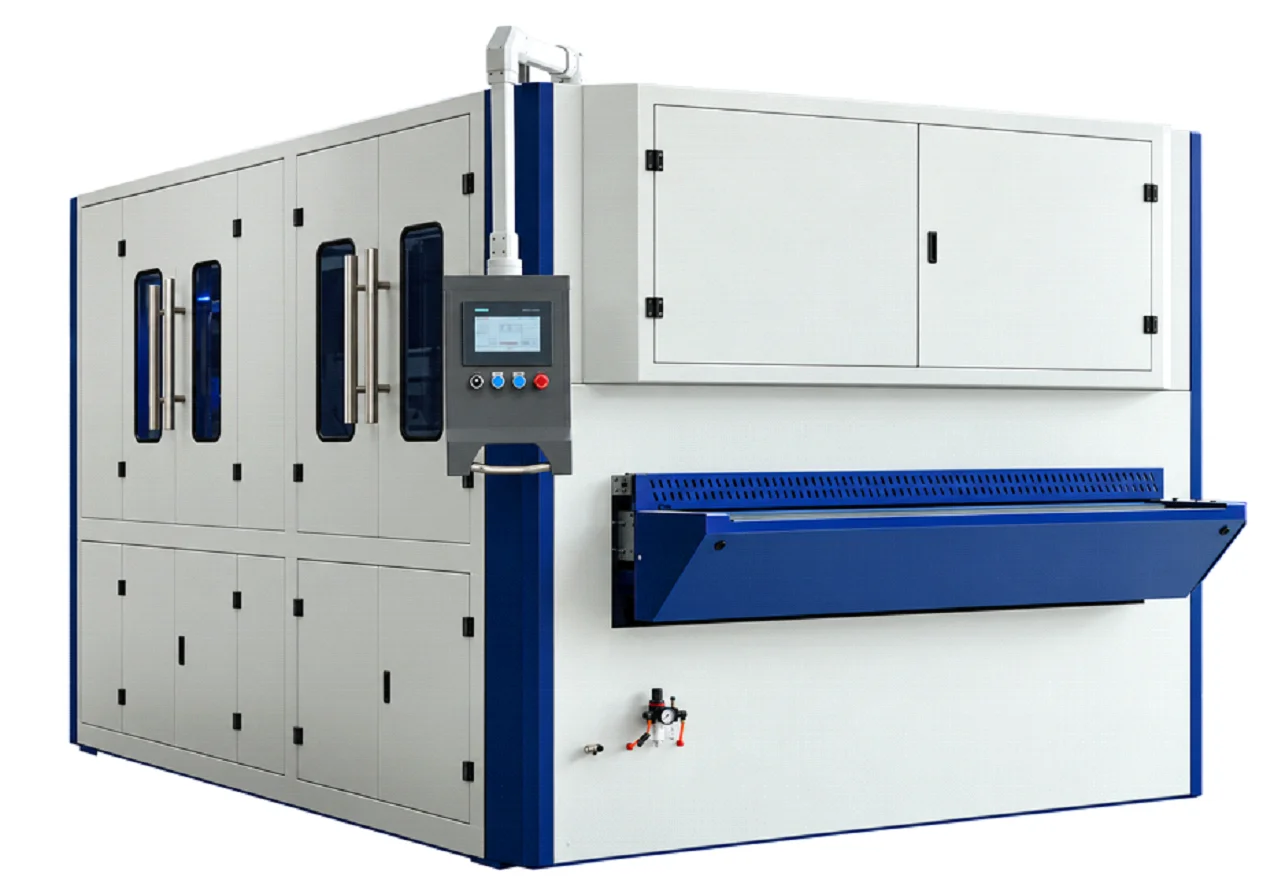

Our New deburring/ polishing machine is ideal for
- Ideal for brushing, polishing, deburring, and edge rounding of sheet metal parts.
- Removing Oxide scale, Oxide layer
Material: carbon steel, stainless steel, aluminum, and copper.
- Material thickness:≥ (.0393")
- Processing width: 50.8-1350 MM

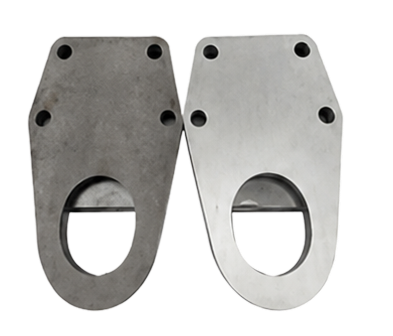

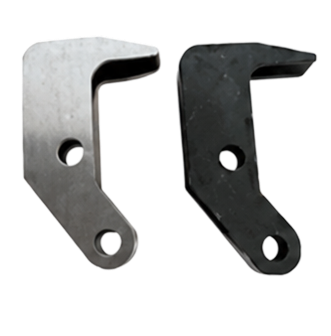

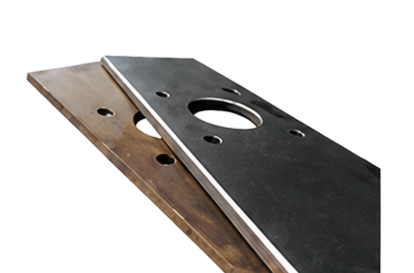

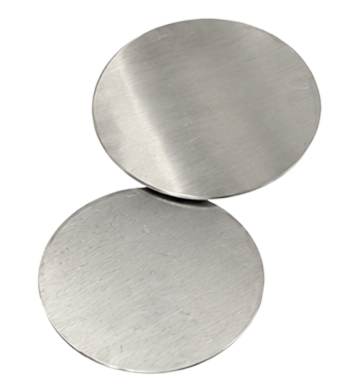

Metal Surface Results
- Ideal for brushing, polishing, deburring, and edge rounding of sheet metal parts.
- Removing Oxide scale, Oxide layer
Material: carbon steel, stainless steel, aluminum, and copper.
- Material thickness:≥ (.0393")
- Processing width: 50.8-1350 MM
Why Choose Us
Why Choose Hafendorfer for Laser Cutting?
Hafendorfer Machine combines advanced laser cutting technology, precision manufacturing, and dependable production capabilities to handle demanding custom metal projects. From sheet metal to tubes and profiles, our team focuses on accurate parts, consistent quality, and efficient production for both custom and repeat manufacturing needs.
01
Precision You Can Count On
Advanced fiber laser technology helps produce accurate, clean, and repeatable cuts for complex parts and demanding production requirements.
02
Multiple Metal Capabilities
Hafendorfer processes mild steel, stainless steel, aluminum, brass, and copper, giving customers flexibility across a wide range of metal cutting applications.
03
Flat & Tube Laser Cutting
From flat sheet metal to tubes and profiles, Hafendorfer offers versatile laser cutting capabilities to support different part designs and fabrication requirements.
04
Built for Production Efficiency
Automated material handling and high-capacity laser systems help support efficient processing for both short and longer production runs.
05
More Than Just Laser Cutting
Customers can also benefit from Hafendorfer’s additional capabilities, including sheet metal fabrication, welding, bending, forming, machining, and secondary processing, helping reduce the need for multiple suppliers.
06
Quality at Every Stage
As an ISO 9001:2015 certified manufacturer, Hafendorfer Machine maintains a quality management system focused on delivering components that meet customer expectations for quality and delivery.
FAQS
Frequently Asked Questions About Laser Cutting
What Materials Can You Laser Cut?
Hafendorfer Machine can laser cut a range of metals, including mild steel, stainless steel, aluminum, brass, and copper, depending on the cutting system and project requirements.
What Thickness of Metal Can Your Laser Cut?
Hafendorfer’s fiber laser capabilities can process carbon steel, stainless steel, and aluminum up to 1 inch thick, while brass and copper can be processed up to approximately 0.39 inches.
Do You Handle Custom and High-Volume Laser Cutting?
Yes. Hafendorfer supports everything from one specialized custom project to large-volume production, making its laser cutting services suitable for different manufacturing requirements.
Do You Offer 2D and CNC Laser Cutting?
Yes. Hafendorfer provides both 2D laser cutting and CNC laser cutting for intricate designs, precision parts, cutting, boring, and engraving applications.
Can You Laser Cut Tubes and Profiles?
Yes. Hafendorfer’s TruLaser Tube 7000 Fiber can process tubes and profiles up to 250 mm in diameter, with wall thicknesses up to 8 mm and bevel cuts up to 45 degrees.
Do You Offer Finishing After Laser Cutting?
Yes. Hafendorfer also has deburring and polishing capabilities for brushing, polishing, deburring, edge rounding, and oxide removal on sheet metal parts.
